VARILITE fixed thoracic supports are designed to complement regular and tall Evolution Back™ systems.

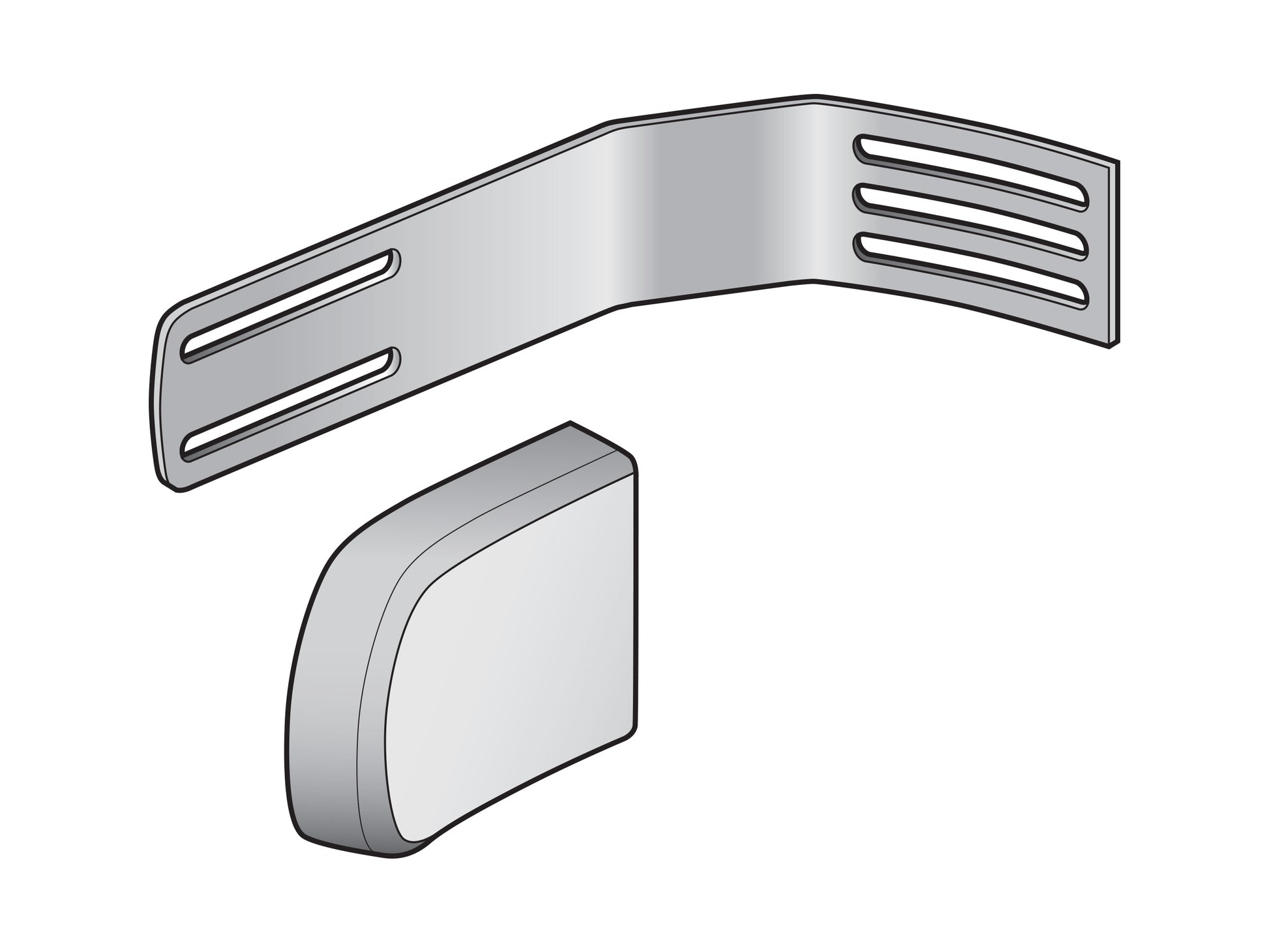

Pad Bracket
Constructed of steel for strength, Fixed lateral pad bracket attaches to the pad. To adjust vertical pad rotation, loosen the two screws attaching the pad bracket to the hinge, rotate pad bracket +/- 10 degrees, and tighten screws. Pad brackets are long size for Fixed lateral supports.

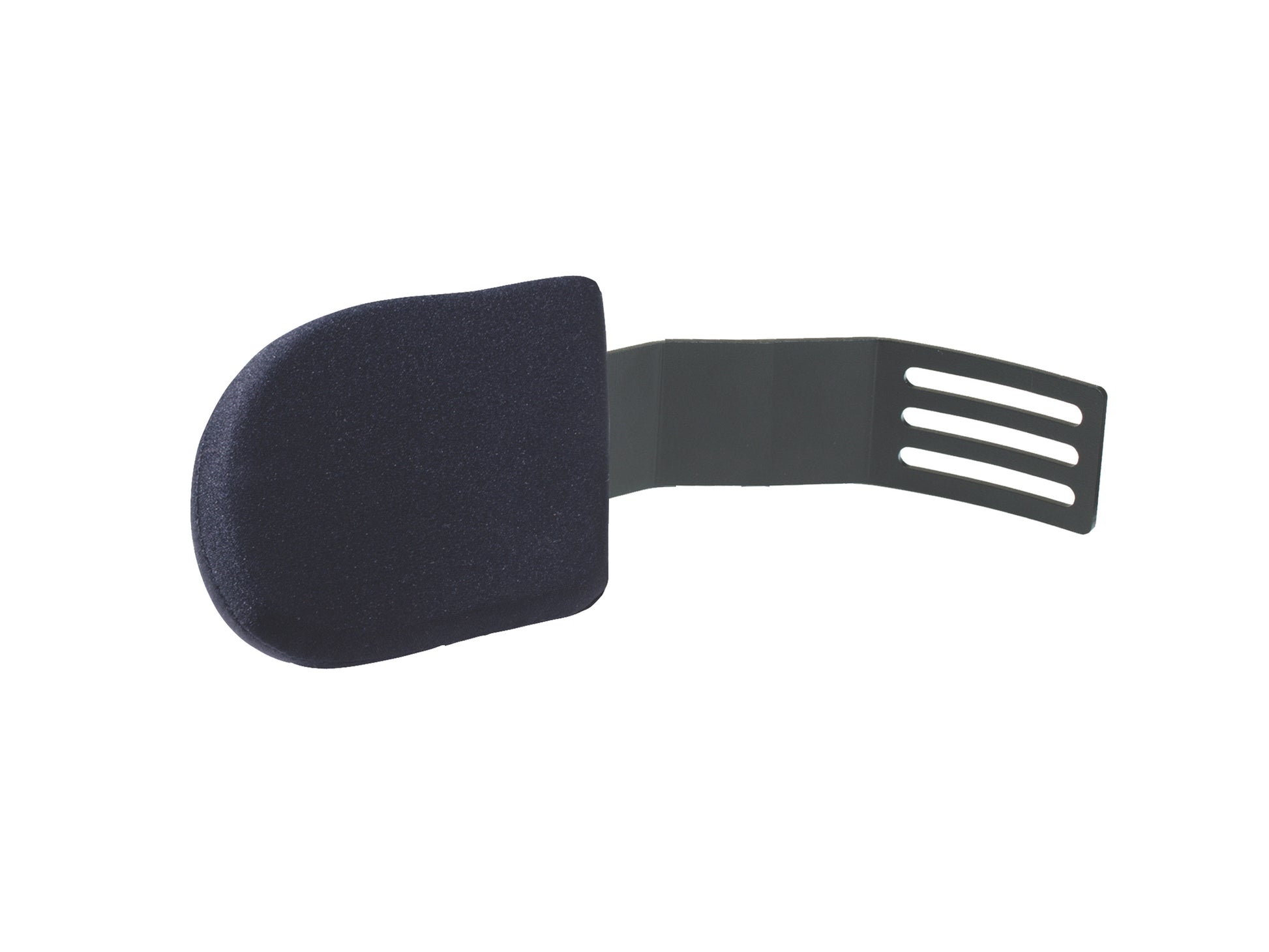

Pad
Pads are available in contoured or linear styles, in three sizes. Closed-cell foam with a steel insert. Slots in steel insert allow horizontal pad adjustment. Pad foam is protected with a removable, machine washable cover. Fixed Lateral pads can be modified by a qualified professional.
Shell Bracket
Constructed of steel, the Fixed Lateral shell bracket is contoured to mount on the inside of a VARILITE Evolution Back regular or tall shell. Low profile bracket is less than 1/8” thick. Shell brackets can be modified by a qualified professional.
PAL Swing-Away lateral supports are also available. PAL Swing-Away laterall supports consist of shell bracket, pad bracket, pad and swing-away mechanism.
